These are all new parts direct from Panasonic

IN STOCK - CAN SHIP NOW!

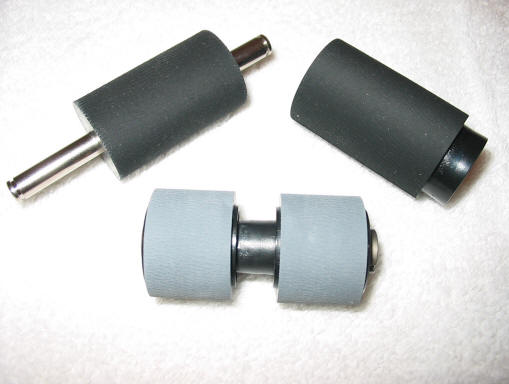

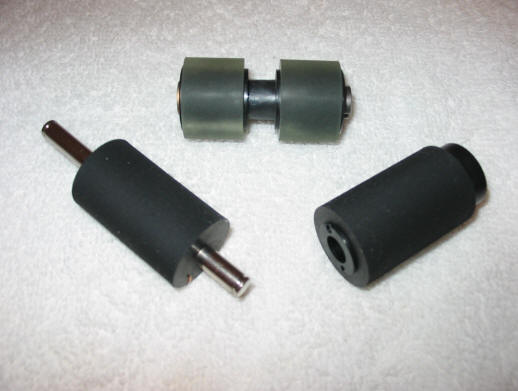

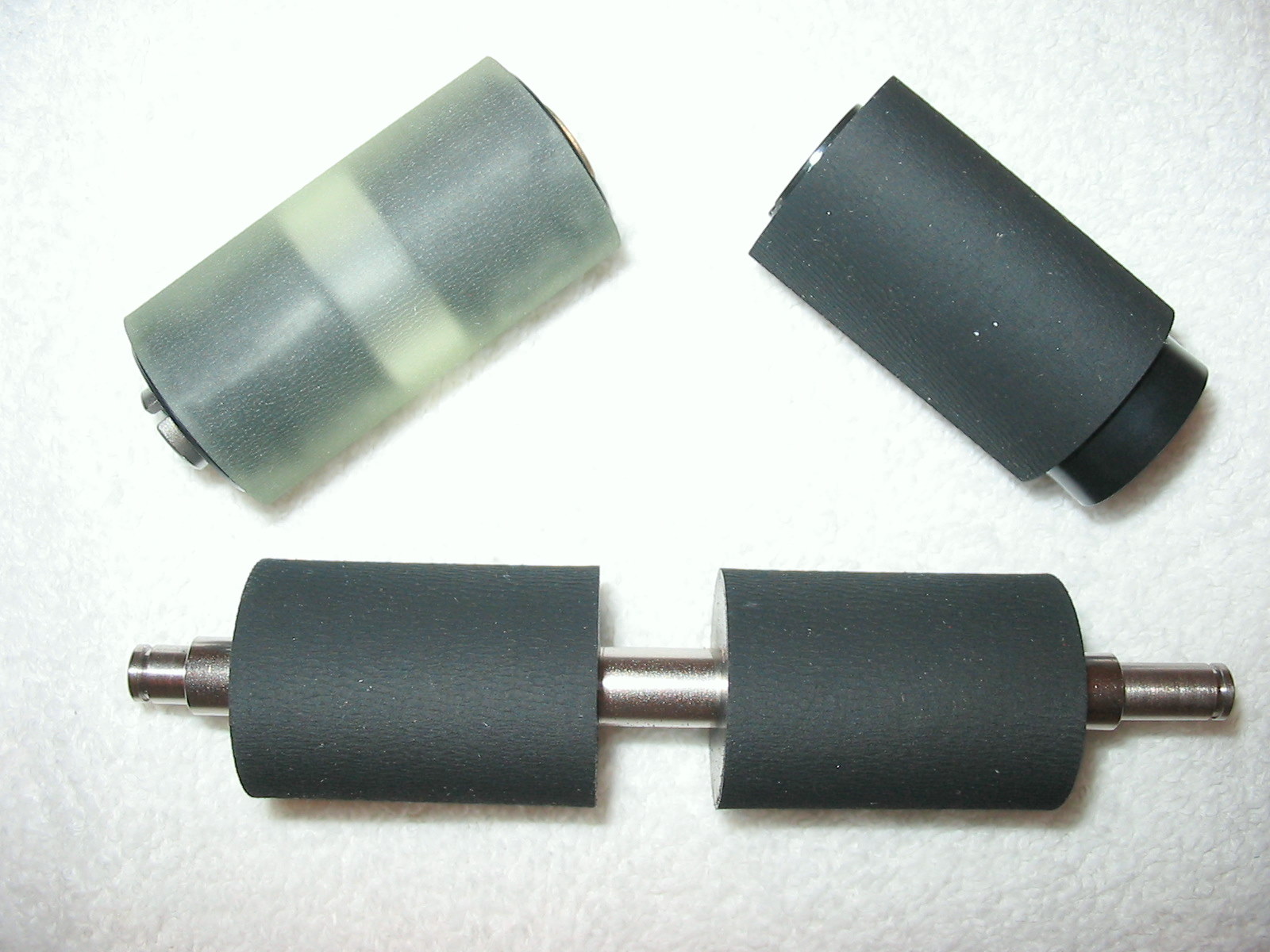

Rollers for Roller Exchange Kit for KV-S2055L, KV-S2055W, KV-S2065L & KV-S2065W      All three rollers that are part of KV-SS009
 shafts not included   List $289.72
$259 plus $5.95 shipping
Roller Exchange Kit for KV-S2055L, KV-S2055W, KV-S2065L & KV-S2065W     KV-SS009 Complete Kit - List $379 $289 plus $12.95 shipping

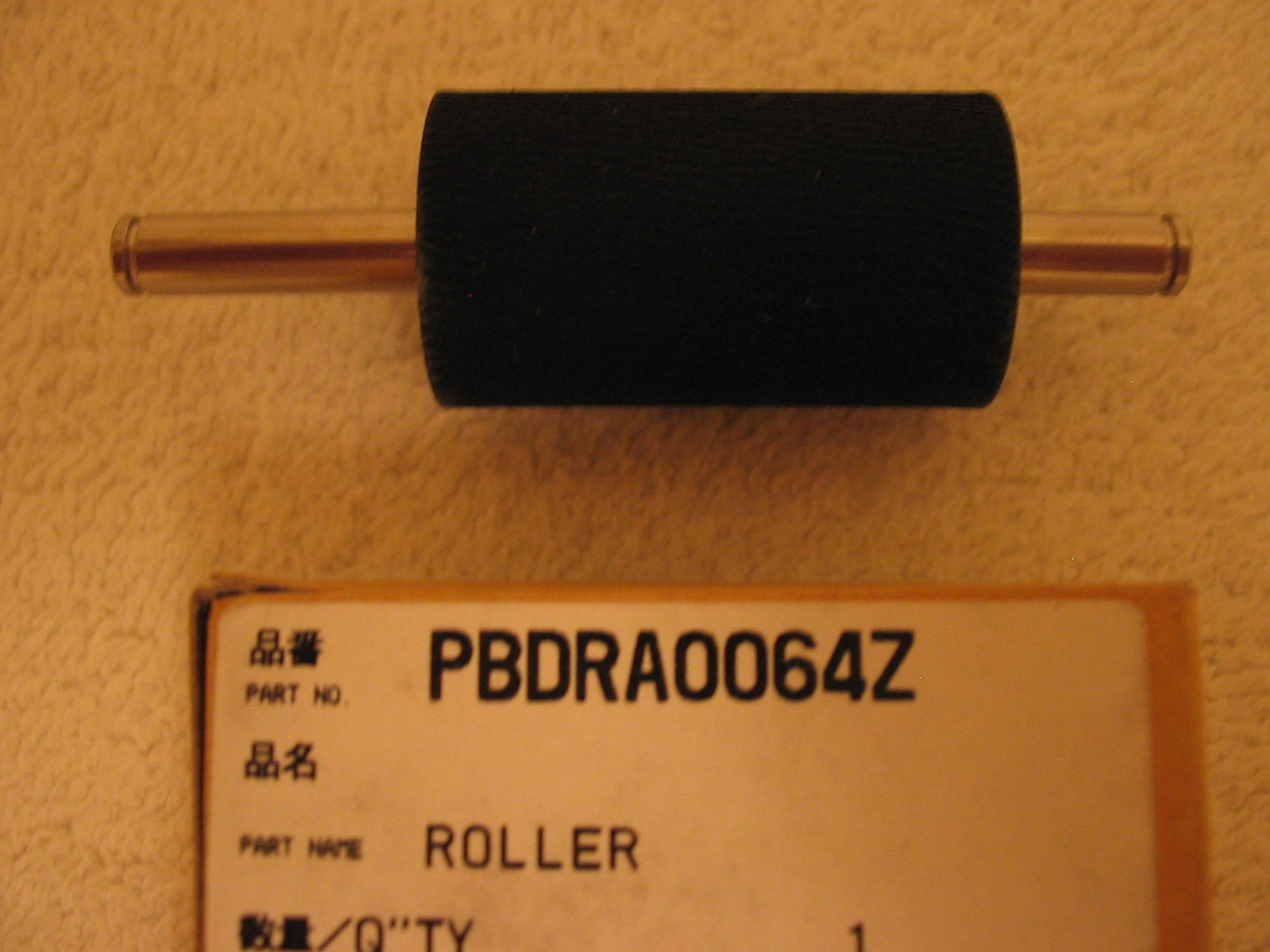

1 Paper Feed Roller PBDRA0064Z     List $91.64 $79 plus $5.95 shipping

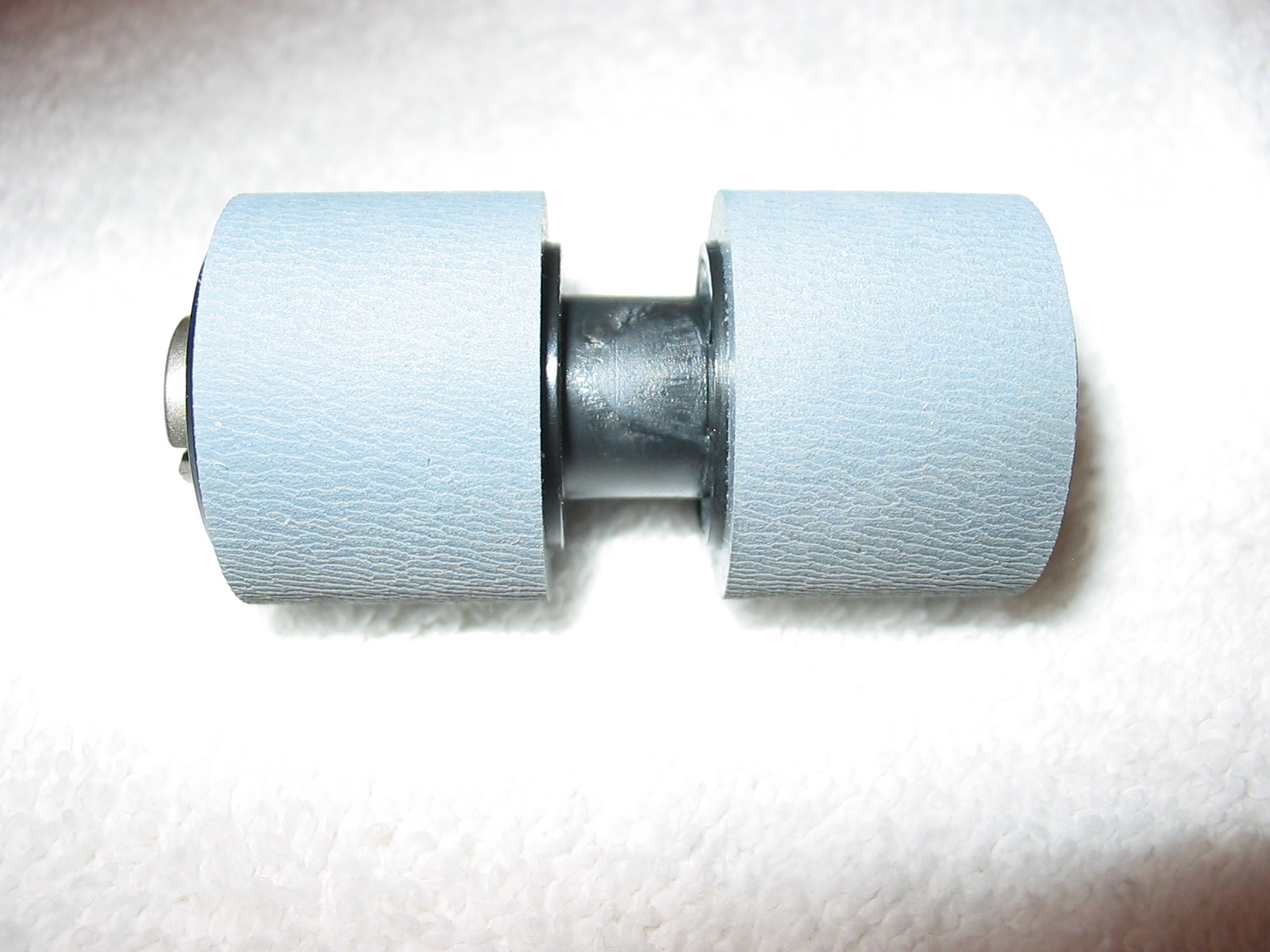

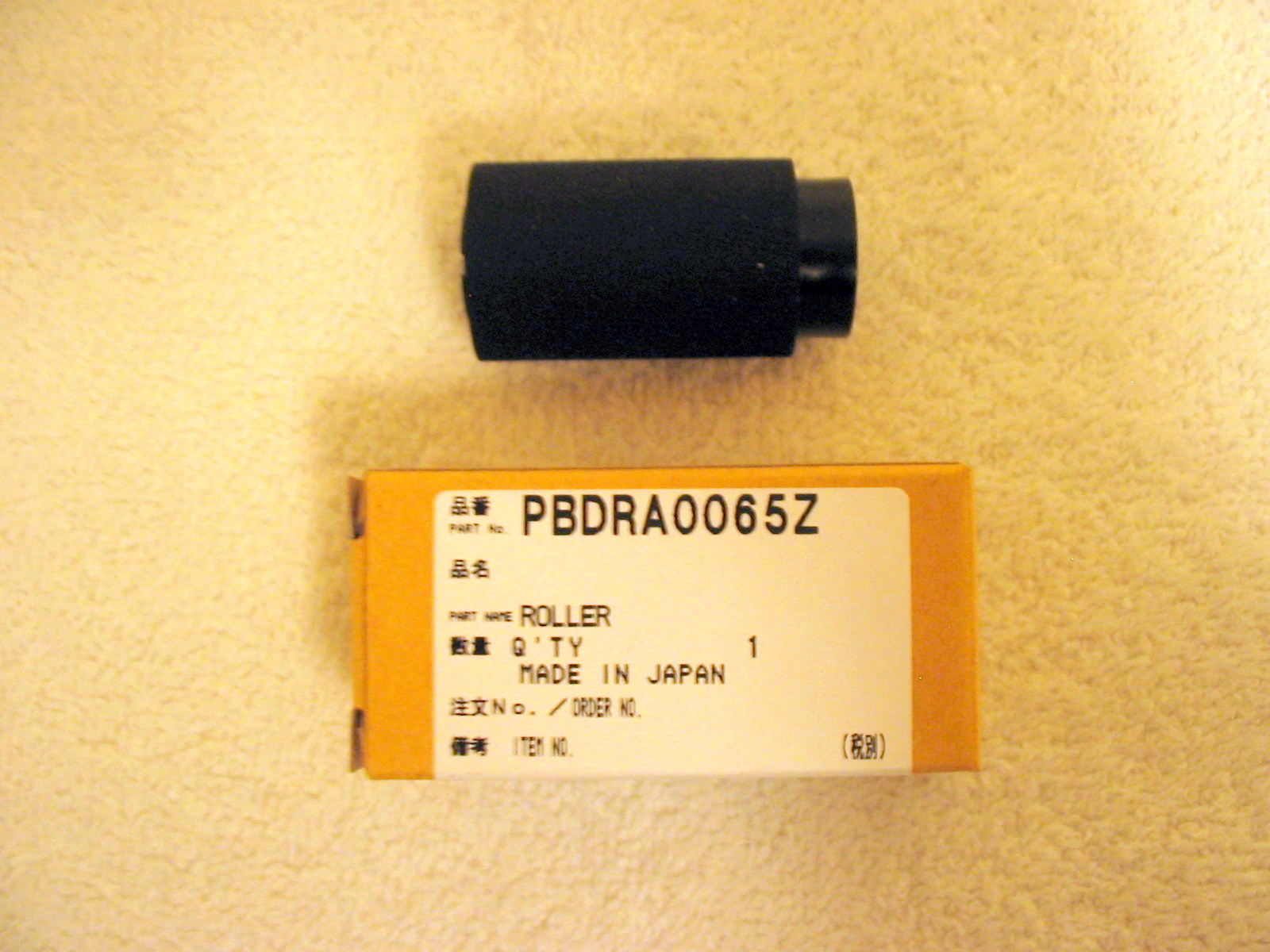

1 Separation Roller PBDRA0065Y    List $90.37 $79 plus $5.95 shipping
1 Retard Roller PBDRA0066Z     List $107.71 $89 plus $5.95 shipping
All three parts should be replaced if you are experiencing document feeding problems.  Try cleaning all three rollers first!

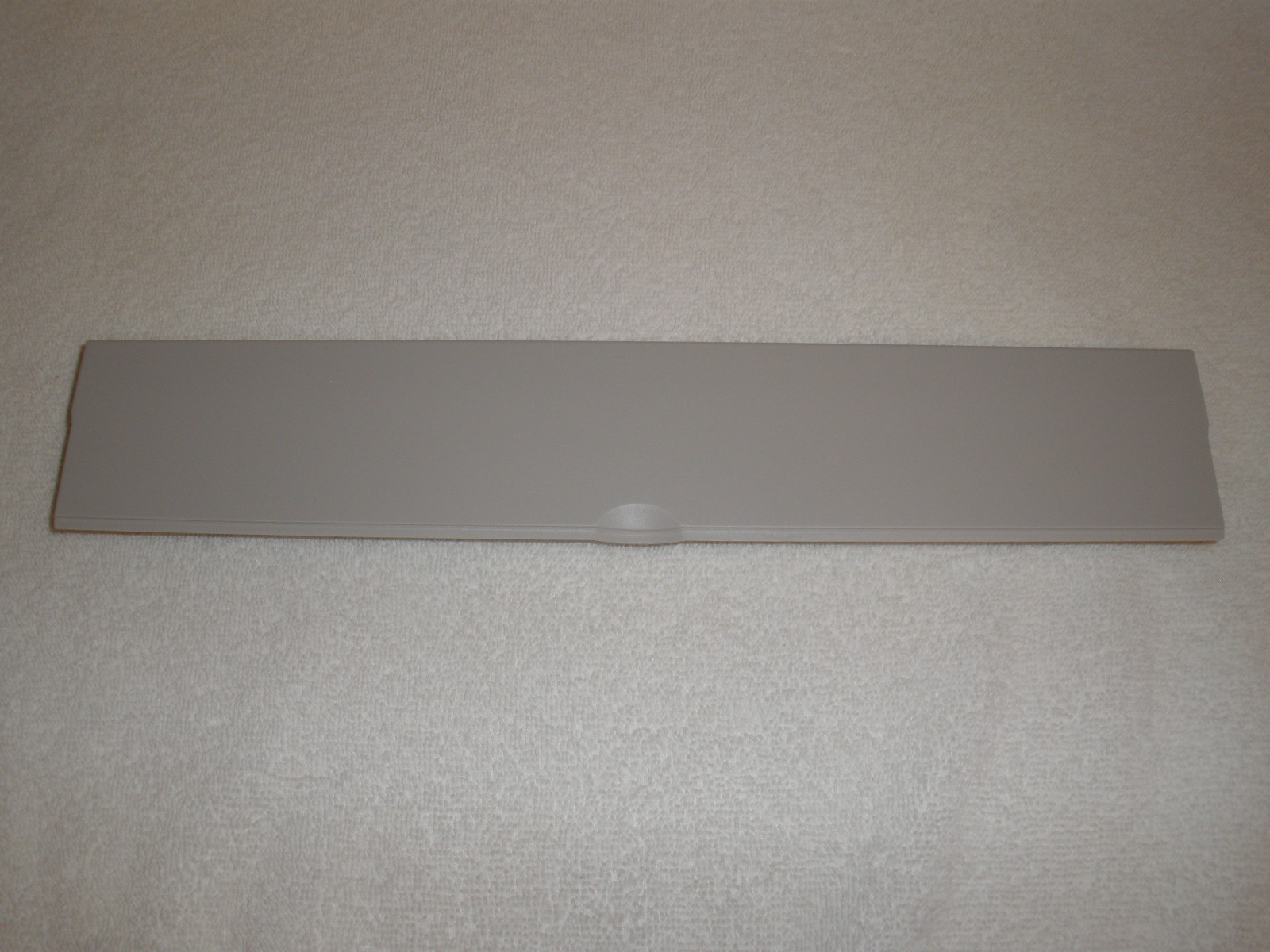

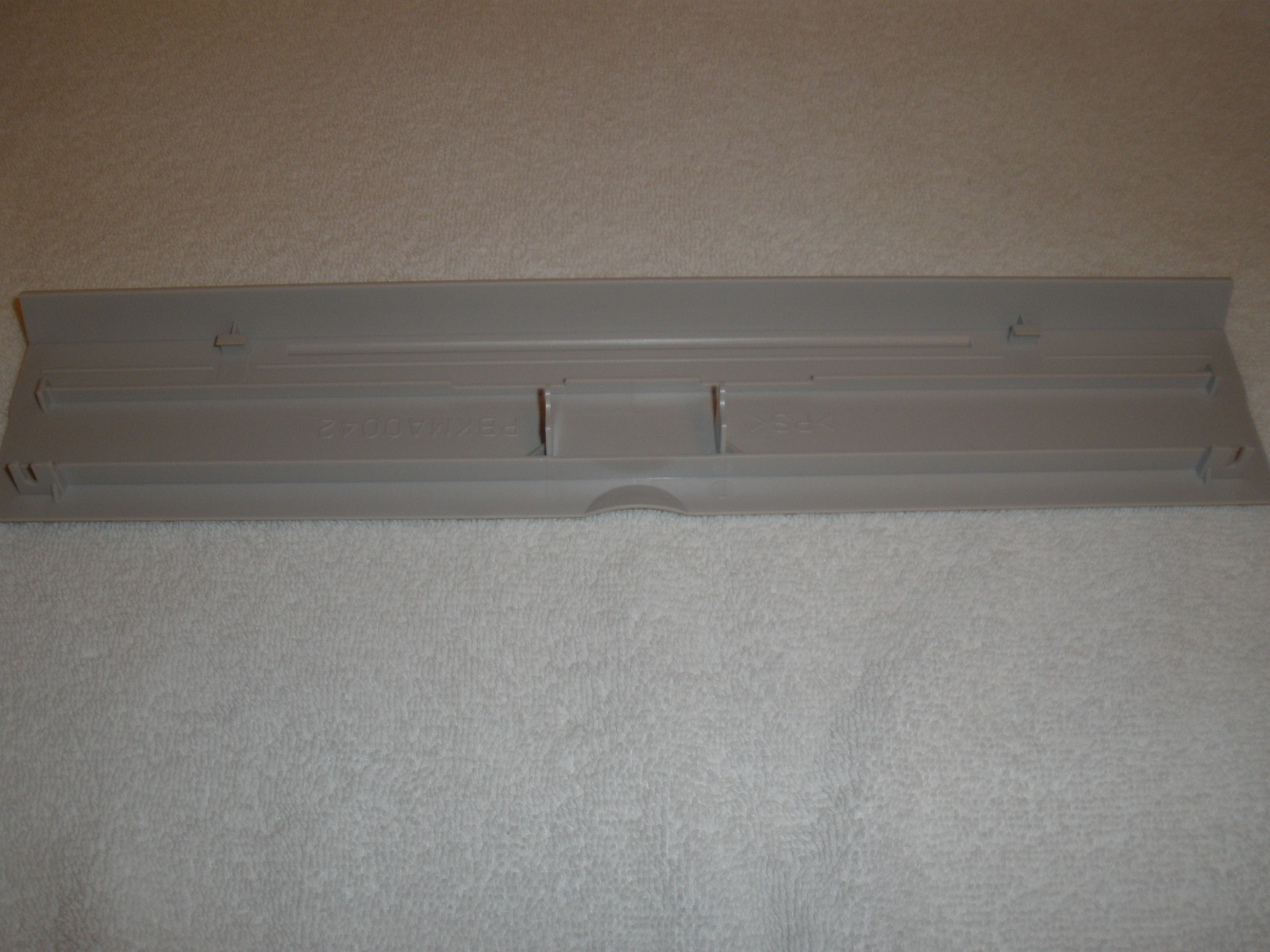

1 Exit Cover   $29 plus $5.95 shipping



IN STOCK - CAN SHIP NOW!


Rollers for Exchange Kit for KV-S3065, KV-S3065CL, KV-S3056CW
All three rollers that are part of KV-SS017     List $322.60
$279 plus $5.95 shipping
Roller Exchange Kit for KV-S3065, KV-S3065CL, KV-S3056CW
KV-SS017 Complete Kit
- List $379
$299 plus 12.95 shipping
1 Paper Feed Roller PBDRA0064Z    List $91.64 $79 plus $5.95 shipping
1 Separation Roller PBDRA0065Y    List $90.37 $79 plus $5.95 shipping
1 Retard Roller Retard     List $140.59 $129 plus $5.95 shipping
All three parts should be replaced if you are experiencing document feeding problems.  Try cleaning all three rollers first!

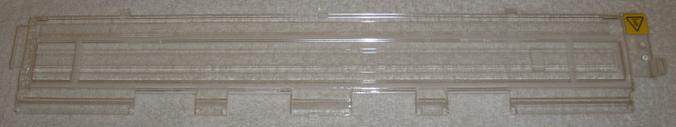

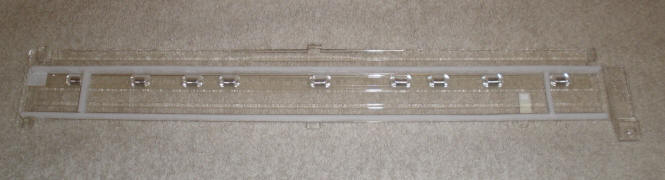

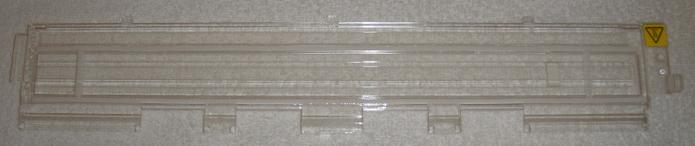

1 Back (lower) Image Sensor (CIS)
 Cover for KV-S3065CL Scanner
PJHRC213Z-J1     List $71.11 $56 plus
 $14.95 shipping

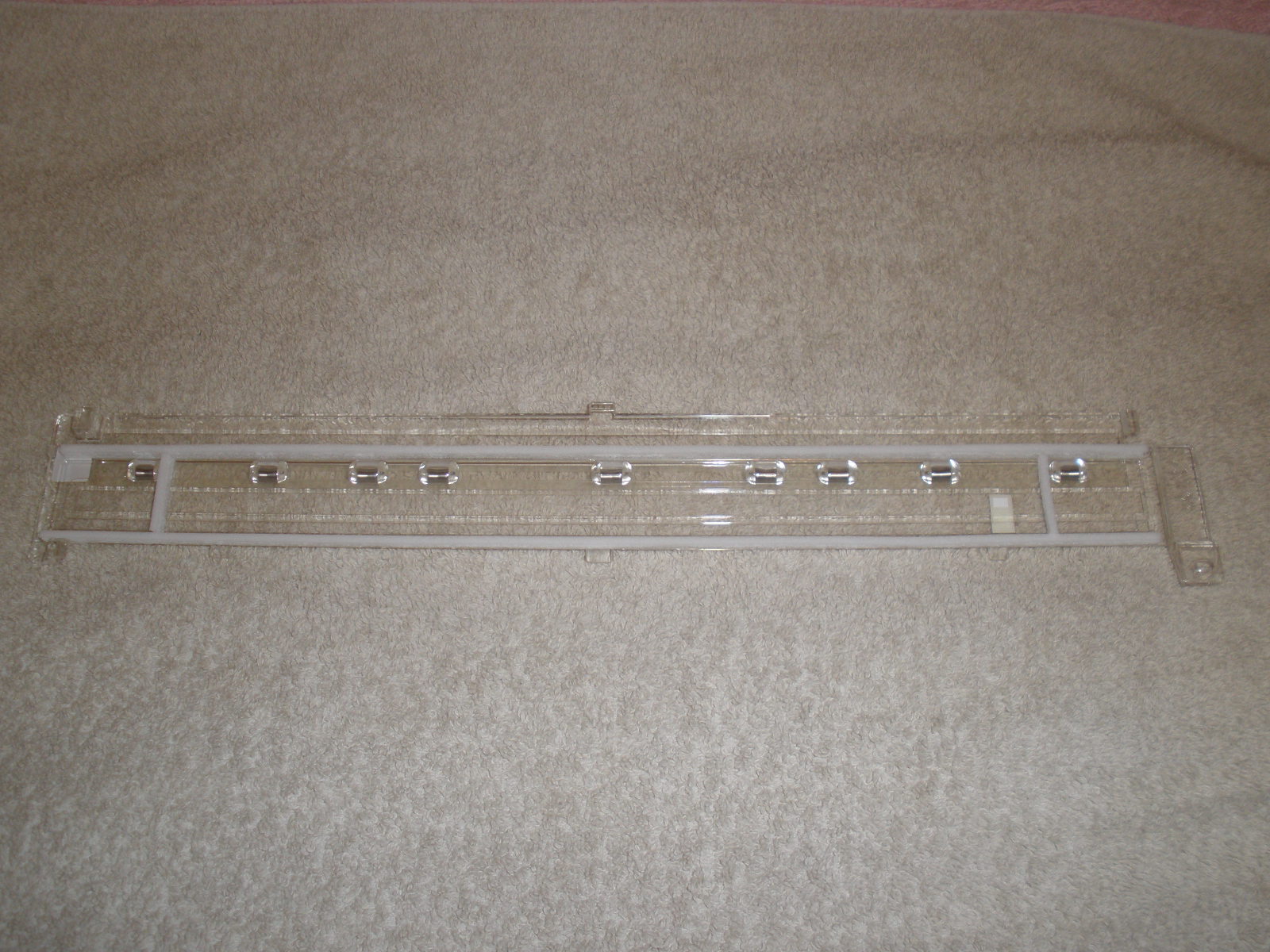

1 Front (upper) Image Sensor (CIS)
 Cover for KV-S3065CL Scanner
PJHRC212Z-J1
Subs to:
PJHRC212-J11     List $130.36
$98 plus
 $14.95 shipping

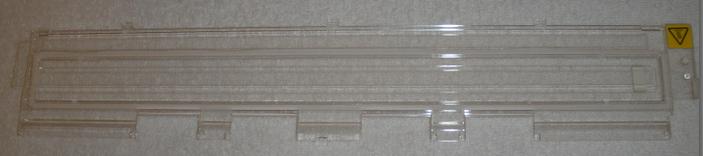

1 Back (lower) Image Sensor (CIS)
 Cover for KV-S3065CW Scanner
PJHRC0213Z-J     List $71.11 $60 plus
 $14.95 shipping

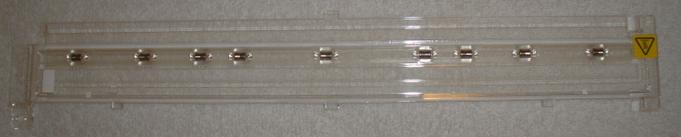

1 Front (upper) Image Sensor (CIS)
 Cover for KV-S3065CW Scanner
PJHRC0212Z-J
Subs to:
PJHRC212-J10     List $131.09
$94 plus
 $14.95 shipping
1 Drive Roller PJDRC0034Z-J     $189.35 $139 plus
 $14.95 shipping
3 Drive Roller Kit - qty 3 PJDRC0034Z-J (3)     List $568.05 $399 plus
 $14.95 shipping

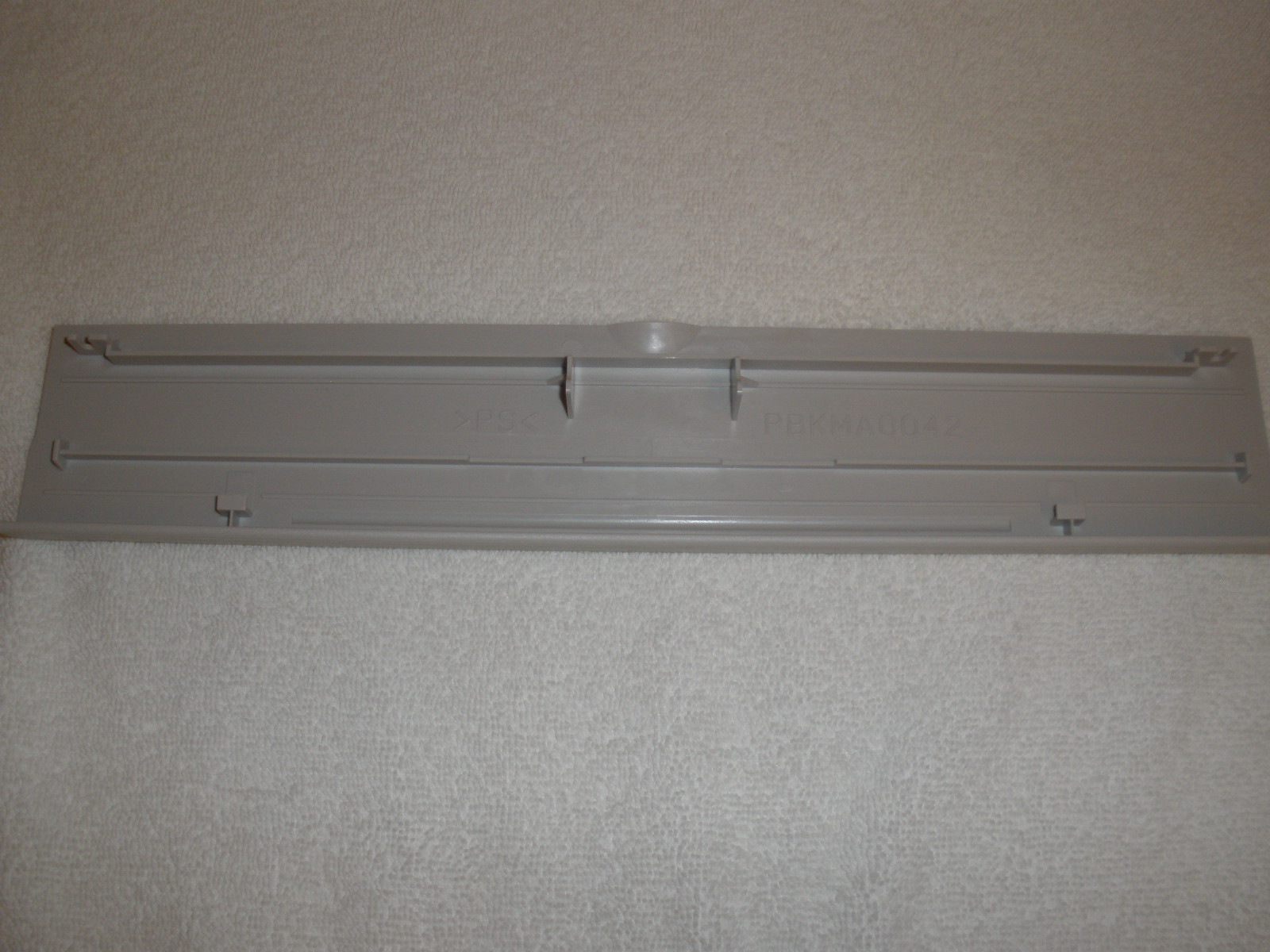

1 Exit Cover   $29 plus $5.95 shipping




KITS IN STOCK - CAN SHIP NOW!


Roller Exchange Kit for KV-S4065, KV-S4065CL, KV-S4065CW, KV-S4065CWCN, KV-S4085CL, KV-S4085CW, KV-S4085CWCN -- KV-SS033 Complete Kit - List $370 $284 plus 12.95 shipping
1 Sensor Unit - UPPER - for KV-S4085CW & KV-S4085CWCN PJWU09990M   List $3,333.25 $2,669.99 delivered
1 Sensor Unit - UPPER - for KV-S4085 CL PJWU09991M   List $3,108.32 $2,489.99 delivered
1 Sensor Unit - UPPER - for KV-S4065 CW & KV-S4065 CWCN PJWU09992M   List $3,930.44 $3,149.99 delivered
1 Sensor Unit - UPPER - for KV-S4065 CL PJWU09993M   List $3,706.12 $2,969.99 delivered
1 Sensor Unit - LOWER - for KV-S4085CW & KV-S4085CWCN PJWU09994M   List $3,330.35 $2,669.99 delivered
1 Sensor Unit - LOWER - for KV-S4085 CL PJWU09995M   List $3,106.42 $2,489.99 delivered
1 Sensor Unit - LOWER - for KV-S4065 CW & KV-S4065 CWCN PJWU09996M   List $3,927.55 $3,149.99 delivered
1 Sensor Unit - LOWER - for KV-S4065 CL PJWU09997M   List $3,703.22 $2,969.99 delivered
1 Sensor Cover - UPPER - for KV-S4065 CW, KV-S4065CWCN, KV-S4085CW & KV-S4085CWCN PJZE099900M   List $149.77 $144.99 delivered

1 Sensor Cover - LOWER - for KV-S4065 CW, KV-S4065CWCN, KV-S4085CW & KV-S4085CWCN PJZE099901M   List $154.43 $144.99 delivered



1 Sensor Cover - UPPER - for KV-S4065 CL & KV-S4085CL PJZE099915M   List $149.77 $144.99 delivered

1 Sensor Cover - LOWER - for KV-S4065 CL & KV-S4085CL PJZE099925M   List $149.77 $144.99 delivered






Rollers for Roller Exchange Kit for KV-S6040W, KV-S6045W, KV-S6050W &  KV-S6055W     All three rollers that are part of KV-SS044
shafts not includ
ed.     List $289.19

Roller Exchange Kit for KV-S6040W, KV-S6045W, KV-S6050W &  KV-S6055W KV-SS044 shafts included - Complete Kit - List $379

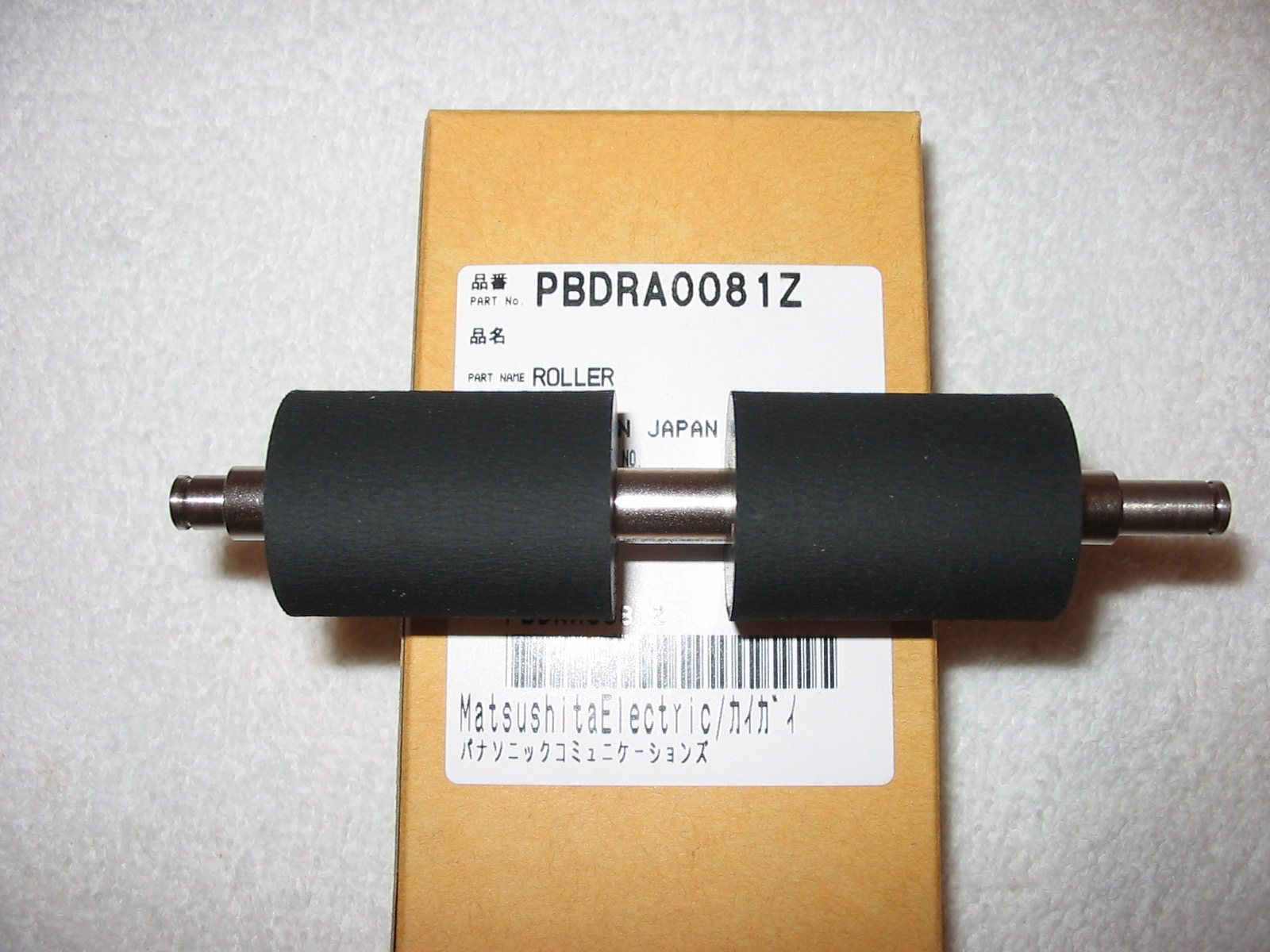

1 Paper Feed Roller PBDRA0081Y     List $111.23 $89 plus $5.95 shipping
1 Separation Roller PBDRA0065Y   List $90.37 $79 plus $5.95 shipping

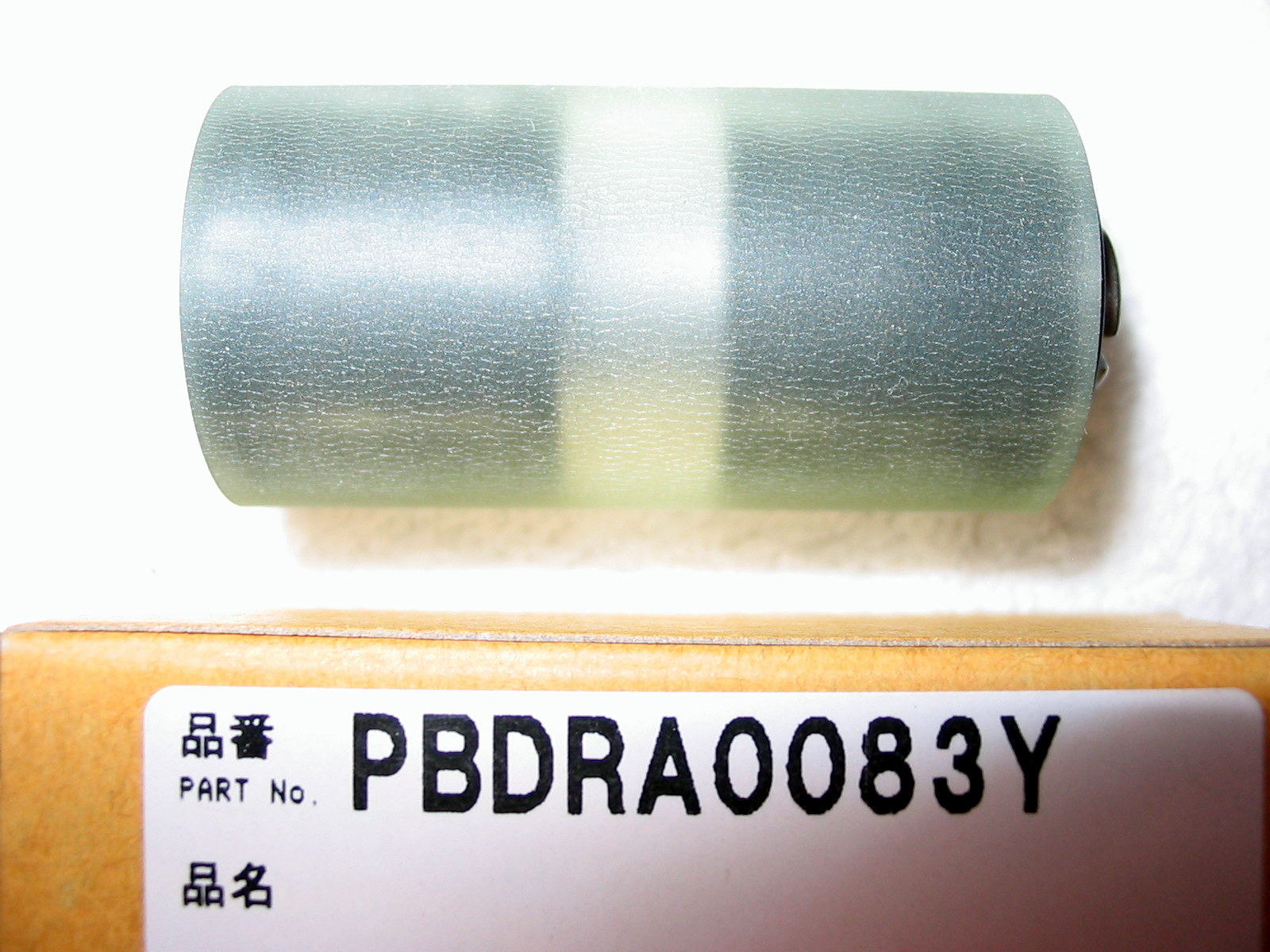

1 Retard Roller PBDRA0083Y     List $92.88
All three parts should be replaced if you are experiencing document feeding problems.  Try cleaning all three rollers first!

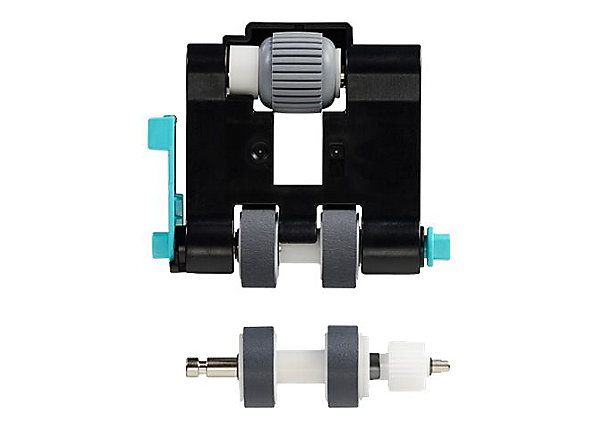

Roller Exchange Kit for KV-S5046H, KV-S5046H-U KV-S5076H-S &  KV-S5076H-U    All three rollers that are part of KV-SS060
     List $199.99
$139 plus $9.95 shipping

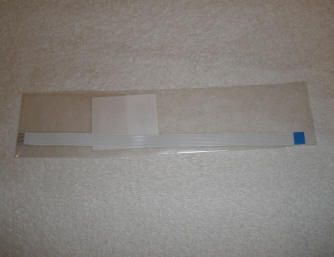

1 Deck Lift sensor Cable - flexes under the deck every time the paper is loaded $29.99 delivered




IN STOCK - CAN SHIP NOW!

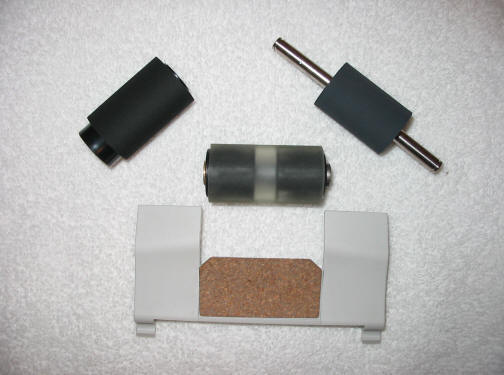

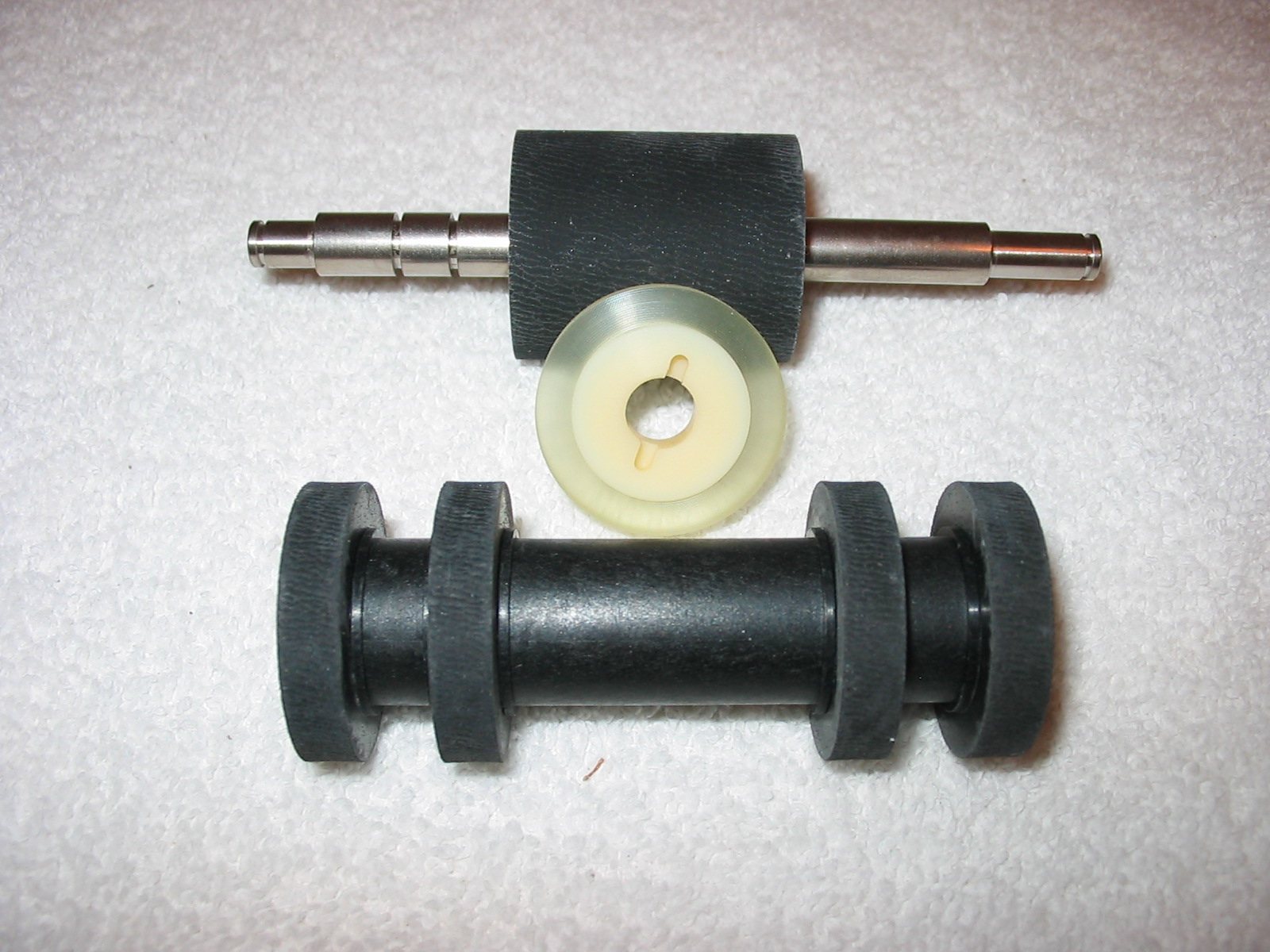

Rollers for Roller Exchange Kit for KV-S2025C, KV-2026C, KV-S2028C, KV-S2045C,  KV-S2046C & KV-S2048C          All four parts shown above     List $345.96 $249 plus $5.95 shipping
Roller Exchange Kit for KV-S2025C KV-2026C KV-S2045C,  KV-S2046C & KV-S2048C   KV-SS024                    $299 plus 12.95 shipping

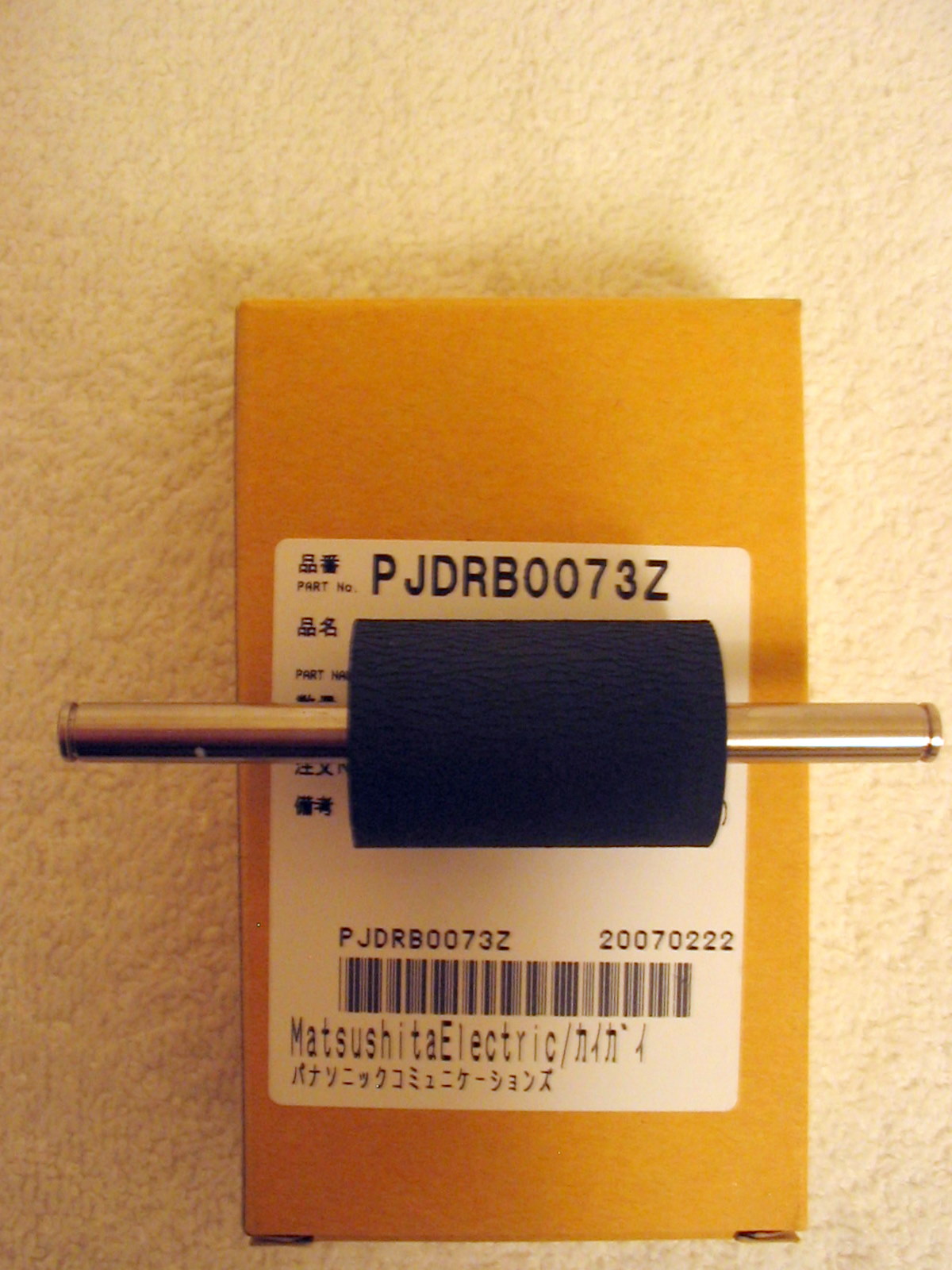

1 Paper Feed Roller PJDRB0073Z     List $87.39 $74 plus $5.95 shipping
1 Separation Roller PBDRA0065Y  List $90.37 $79 plus $5.95 shipping

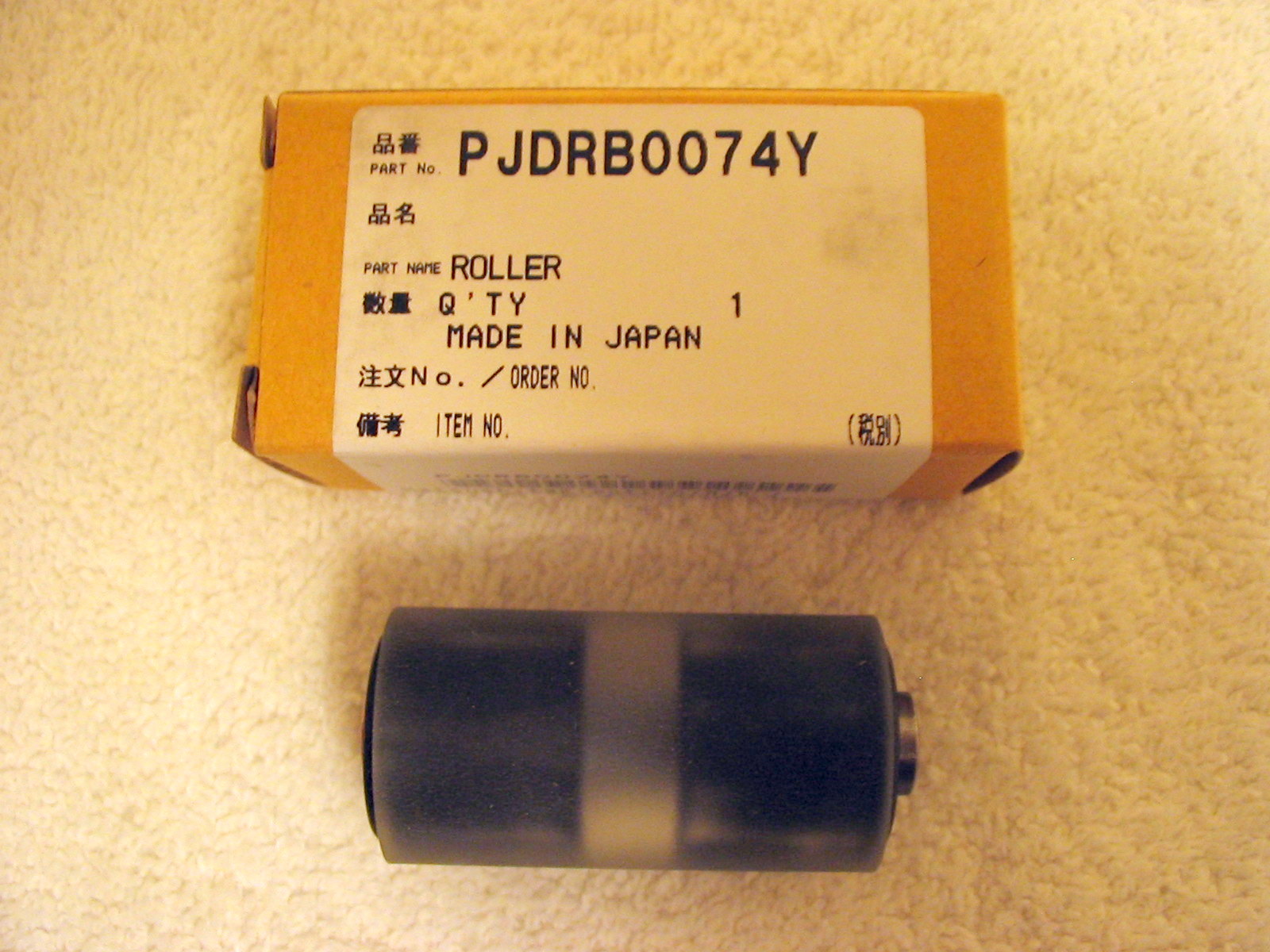

1 Retard Roller PJDRB0074Z     List $159.09 $114 plus $5.95 shipping

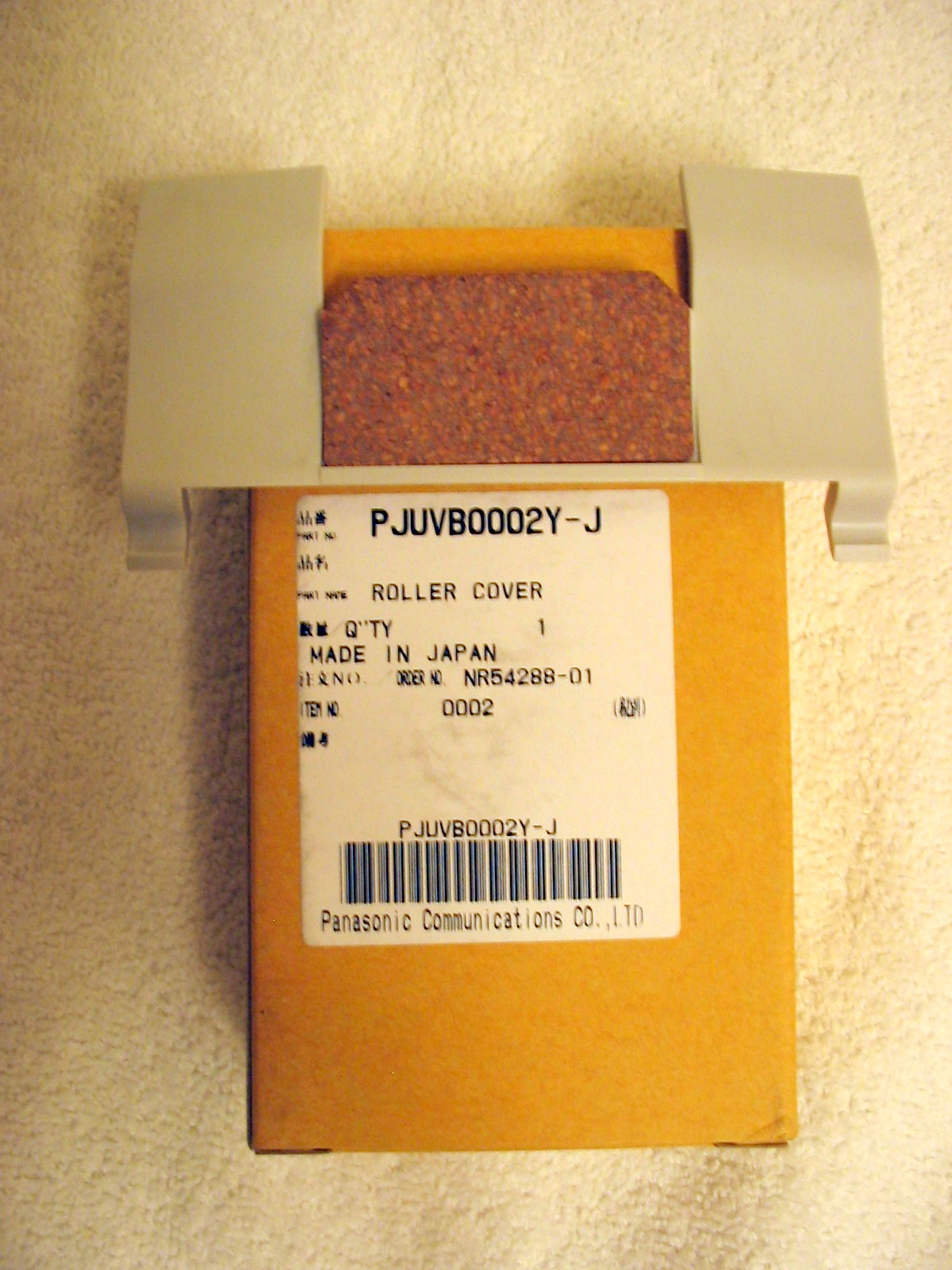

1 Retard Cover PJUVB0002Y-J     List $14.40 $12 plus $5.95 shipping

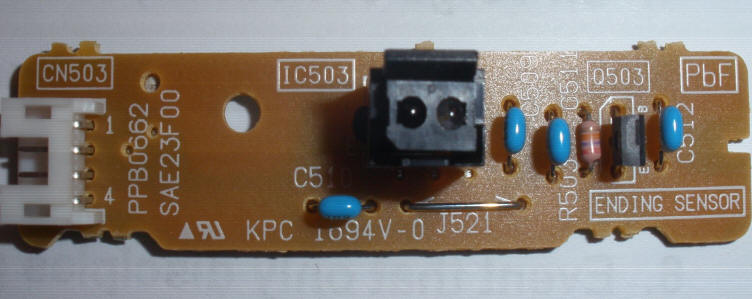

1 Ending Sensor PPB662SAE23F   $24 plus $5 shipping
All four parts should be replaced if you are experiencing document feeding problems.  Try cleaning all three rollers first!  This machine required the Panasonic Utility program to reset the counters




IN STOCK - CAN SHIP NOW!

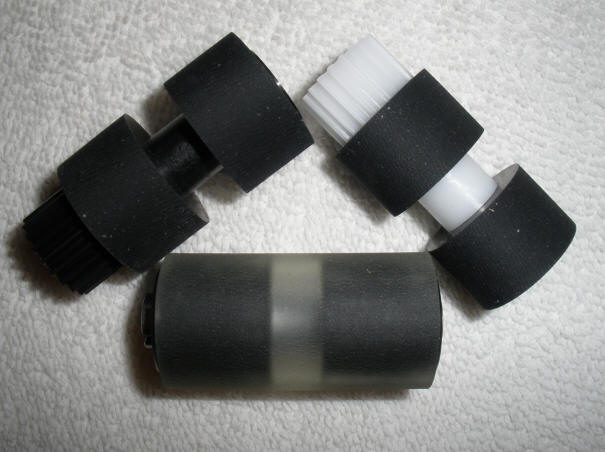

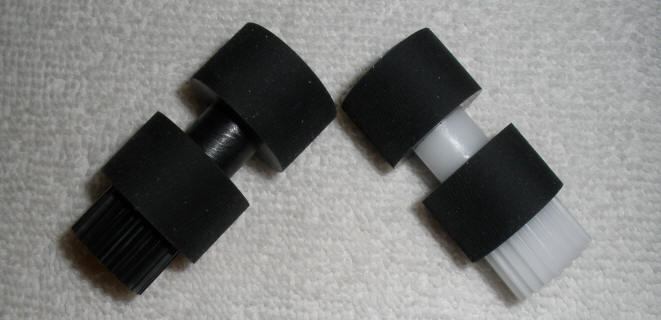

Rollers for Rollers Exchange Kit for KV-S7065C   Three rollers that are part of KV-SS015  -  shafts not included. $199 plus $5 shipping
Roller Exchange Kit for KV-S7065C including shafts.      KV-SS015  List $379 $284.50 plus $12.95 shipping
1 Paper Feed Roller PJDRB0097Y or Z     List $64.10 $55 plus $5 shipping
1 Separation Roller PJDRB0101Y or Z     List $64,10 $57 plus $5 shipping
1 Retard Roller PJDRB0098Y or Z     List $111.87 $92 plus $5 shipping

  PJHEB0100Z Lower or Upper ADF Glass
for s/n last digit A or B
$79 plus
 $14.95 shipping
  PJHEB100Z-J1 Lower ADF Glass 1     List $119.46
for s/n last digit after A or B
$99 plus
 $14.95 shipping
  PJHEB100Z-J2 Upper ADF Glass 2     List $115.39
for s/n last digit after A or B
$99 plus
 $14.95 shipping
12 Rollers PBDRA0029Z-12 $55 plus
 $14.95 shipping
  Ending Sensor Board PPB723ADF25H
old part number
PPB723ADF05H
$13.95 plus $12.95 shipping
  Drive Roller 1 Assy PJDRB99Z-J1     List $103.13 $93.95 plus $12.95 shipping
  Drive Roller 2 Assy PJDRB100Z-J2     List $104.90 $93.95 plus $12.95 shipping
  Drive Roller 3 Assy PJDRB9100Z-J1     List $104.90 $93.95 plus $12.95 shipping
  Drive Roller 4 Assy PJDRB99Y-J     List $140.45
old p/n PJDRB99Z-J2
$119.95 plus $12.95 shipping
  Drive Belt 1& 2 B60S2M160GB $12.95 plus $12.95 shipping
  Drive Belt 3 B60S2M334GB $19.95 plus $12.95 shipping

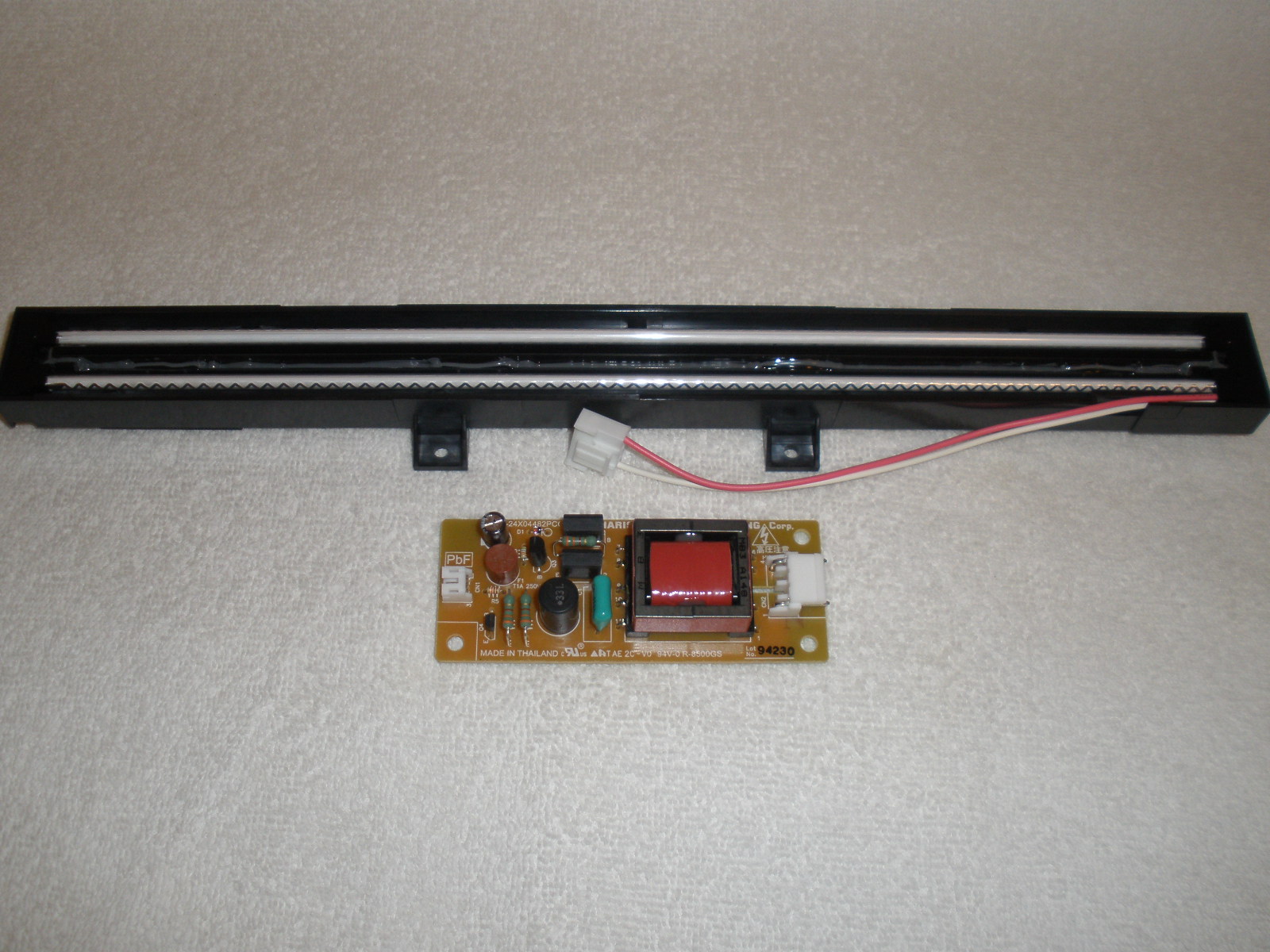

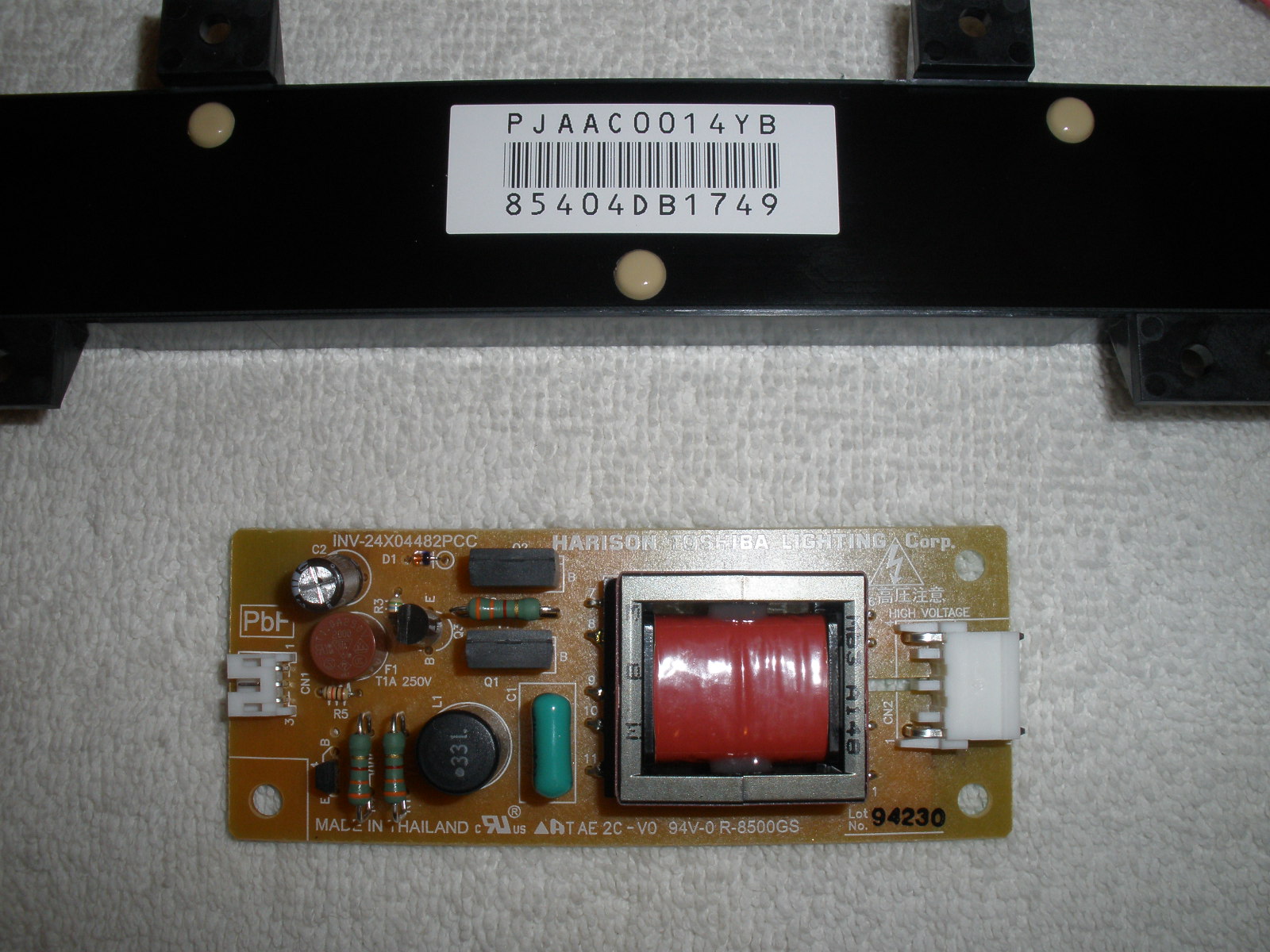

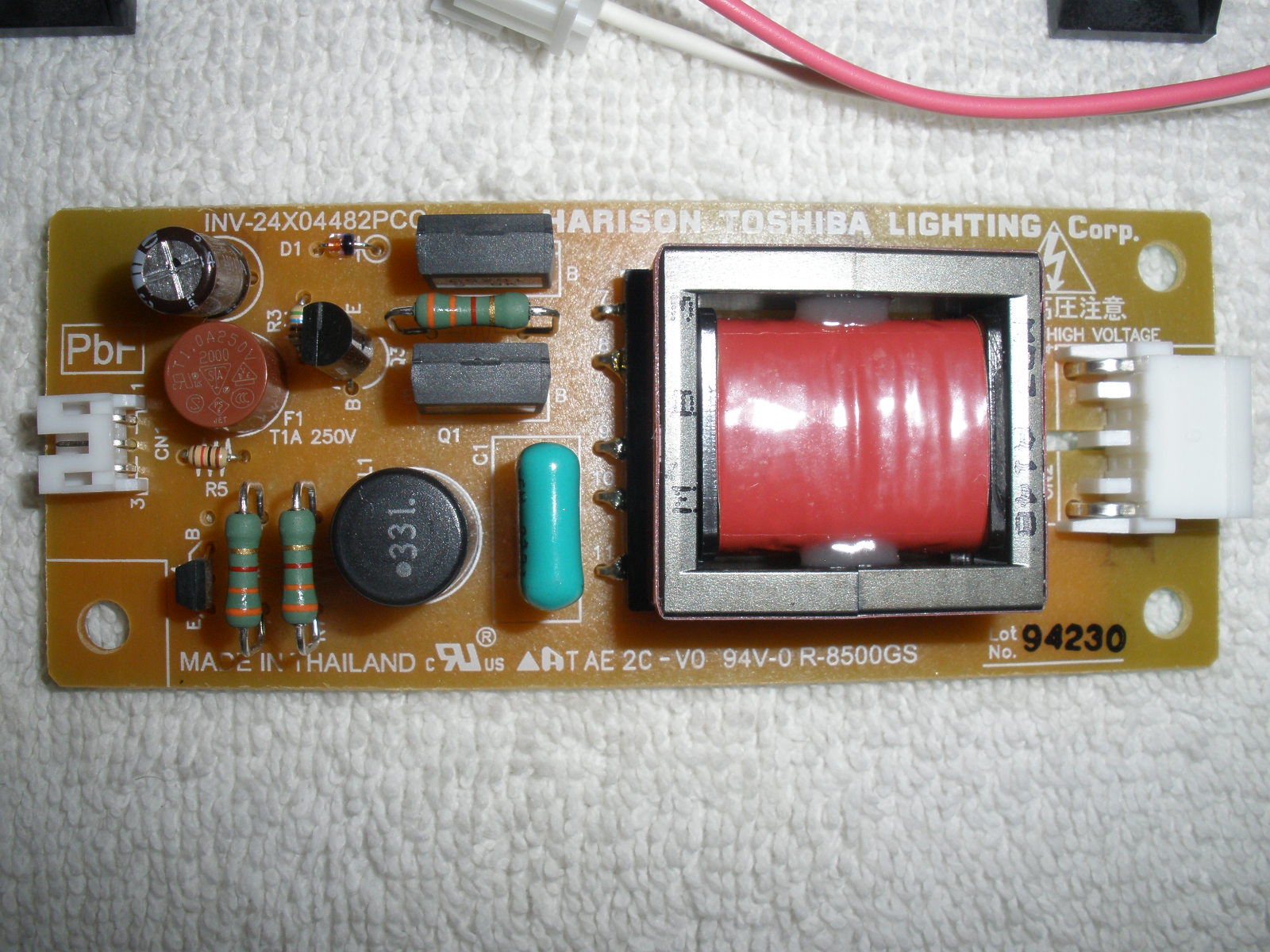

1 CIS- Scanner Unit w/pcb - Lamp Asm
List $1707.84
L2CC00000009, PJAAC0014Z,
PJAAC0014Y
$1499.99 plus
 $19.95 shipping
All three parts should be replaced if you are experiencing document feeding problems.  Try cleaning all three rollers first!


Roller Exchange Kit for KV-S3105C/KV-S3185 - Complete Kit - KV-SS026 - List $725 $629.99 plus
 $14.95 shipping
1 Paper Feed Roller List $131.09 $109.99 Plus $14.95 Shipping
1 Separation Roller List $140.45 $119.99 Plus $14.95 Shipping
1 Retard Roller List $184.69 $149.99 Plus $14.95 Shipping
1 Retard Pad PJHRB0091Z-J     List $35.55 $29.99 Plus $5 Shipping
All four parts should be replaced if you are experiencing document feeding problems.  Try cleaning all three rollers first!


Roller Exchange Kit for KV-SS905C - Complete Kit - KV-SS012 - List $725 Discontinued
1 Paper Feed Roller PJDRB0056Y or Z     List $154.69 Discontinued
1 Separation Roller PJDRB0029Y or Z     List $111.99 Discontinued
1 Retard Roller PJDRB0028Y or Z or     List $145.41
PJDRC0055Z     List $181.31
Discontinued
1 Retard Pad PJHRB0091Z-J     List $35.55 Discontinued
All three parts should be replaced if you are experiencing document feeding problems.  Try cleaning all three rollers first!



Parts are not returnable unless wrong part is received - usually ships within 15 days.

Trouble shooting tip:  I had a KV-S2065W that needed to have at least a half inch if paper in it before it thought that it had any paper to scan.  I replaced the three rollers but that did not fix the machine.  After removing about a quarter of a pound of staples from the bottom of the scanner -  that did not fix it either.  The only clue was when you pushed down on the deck that lifted up the paper - there was a slight click, but there is no switch down below the deck lifter.  The problem turned out to be the small flat cable that connects the pcb card and paper present sensor to the main unit was folded in such a way that it was too short going from the deck lifter card to the cable holder. I refolded the cable to allow it to be half of an inch longer and the machine worked for the first time in months,  But it only worked for 3 days and upon further investigation the end of the flat cable was almost broken off and had to be replaced.   PRAISE THE LORD!!!



KV-S2065 Series Machines KV-S3065 Series Machines
Size Sensor Flat Cable - $29.95
Delivered
Size Sensor Flat Cable - $29.95
Delivered


KV-SS03 Series ALL Machines KV-SS03 Series ALL Machines
KV-SS03 Cleaning Kit - $29.95
plus $9.95 shipping
Qty 3 -KV-SS03 Cleaning Kits - $83.85
plus $9.95 shipping
